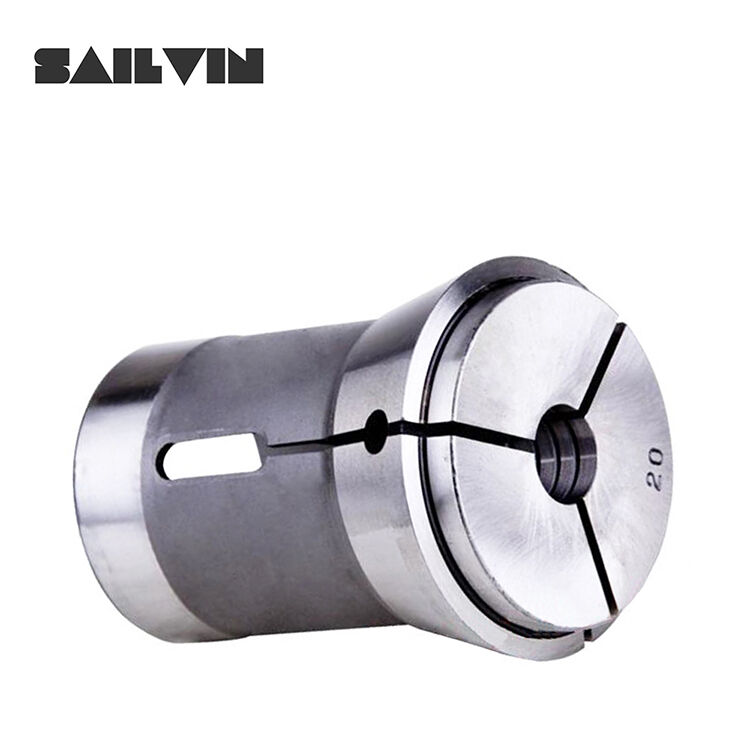

Pull Back Type DIN6343 Collet
Contact us
Return to list

►Products description:

1, Material: 65Mn

2, Hardness: Clamping part  HRC55-60

                     Elastic part    HRC40-45

3, Applicable to all sorts of automatic lathes, turret lathes.

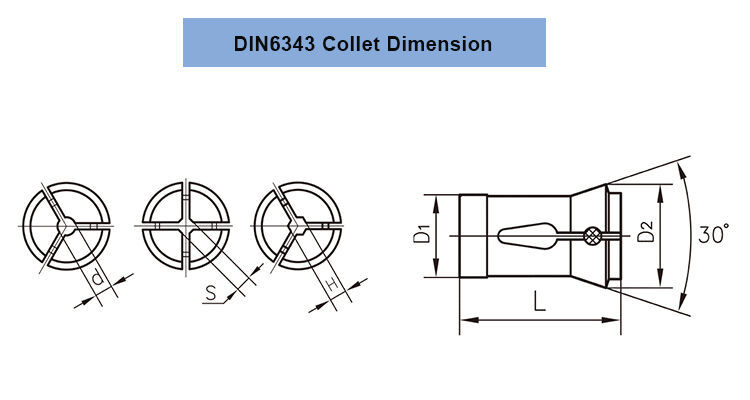

DIN6343 COLLET-5.jpg

Model

D1(mm)

D2(mm)

L(mm)

Hole size(mm)

Weight(kg)

Round

Square

Hex

DIN6343-F17.5

17.5

22

51

13

8

10

0.05

DIN6343-F22

22

30

55

16

11

13

0.09

DIN6343-F27

27

38

72.7

22

15

19

0.10

DIN6343-F28

28

38

70

22

15

19

0.12

DIN6343-F32

32

45

75

26

18

22

0.27

DIN6343-F35

35

48

80

30

21

26

0.35

DIN6343-F42

42

55

94

36

25

30

0.49

DIN6343-F48

48

60

94

42

29

36

0.57

DIN6343-F56

56

68

94

50

35

42

0.65

DIN6343-F66

66

84

110

60

42

52

1.16



►Products Images:

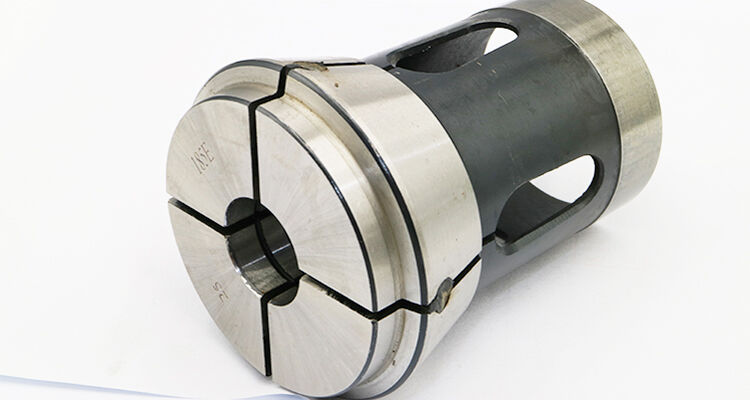

DIN6343 COLLET-1.jpg

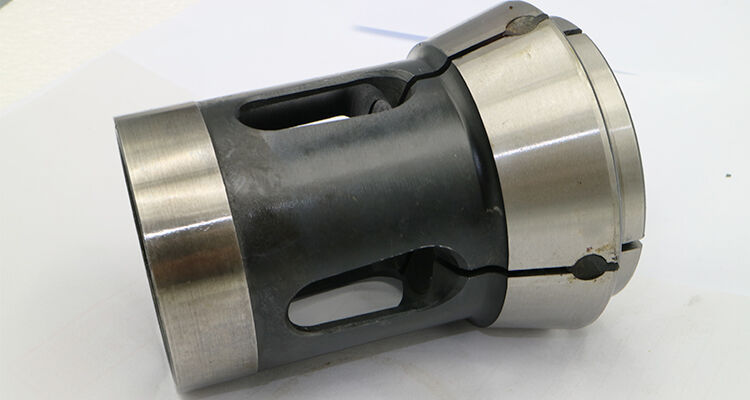

DIN6343 COLLET-2.jpg

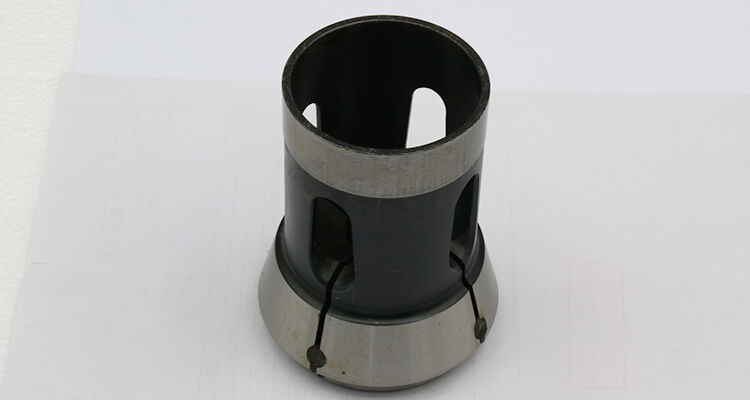

DIN6343 COLLET-3.jpg

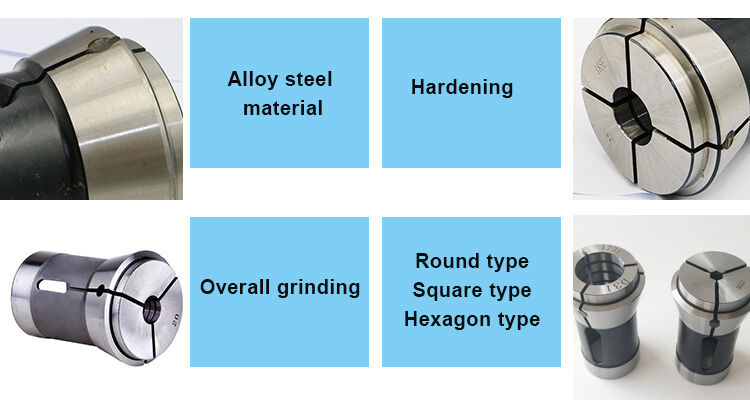

DIN6343 COLLET-4.jpg
