►Products description:

MAS403 BT Pull Stud

1, Material: 40Cr

2, Hardness: HRC48-52

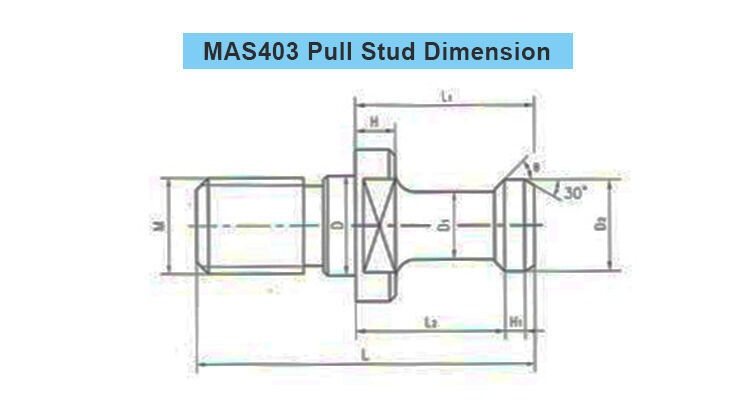

BT Pull Stud-6.jpg

mm

Model

L

L1

L2

D

D1

D2

H

H1

M

θ

BT30(θ)

43

23

18

12.5

7

11

5

2.5

M12

45°

60°

90°

BT40(θ)

60

35

28

17

10

15

6

3

M16

45°

60°

90°

BT50(θ)

85

45

35

25

17

23

10

5

M24

45°

60°

90°

►Products Images:

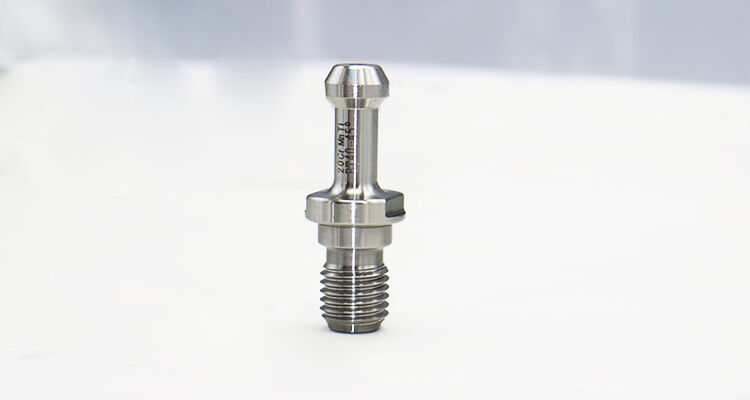

BT Pull Stud-1.jpg

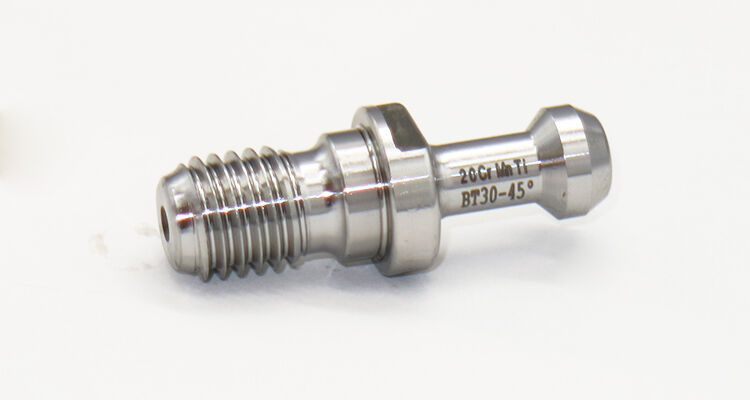

BT Pull Stud-2.jpg

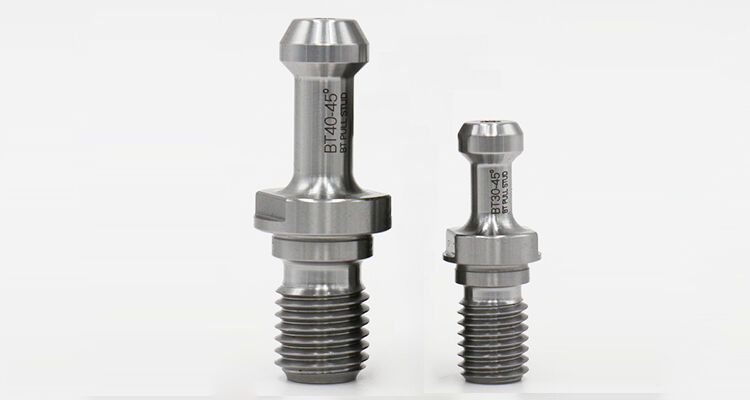

BT Pull Stud-3.jpg

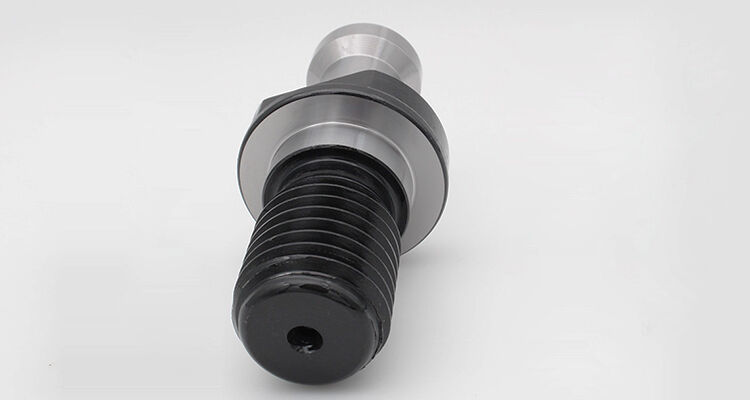

BT Pull Stud-5.jpg
