►Products description:

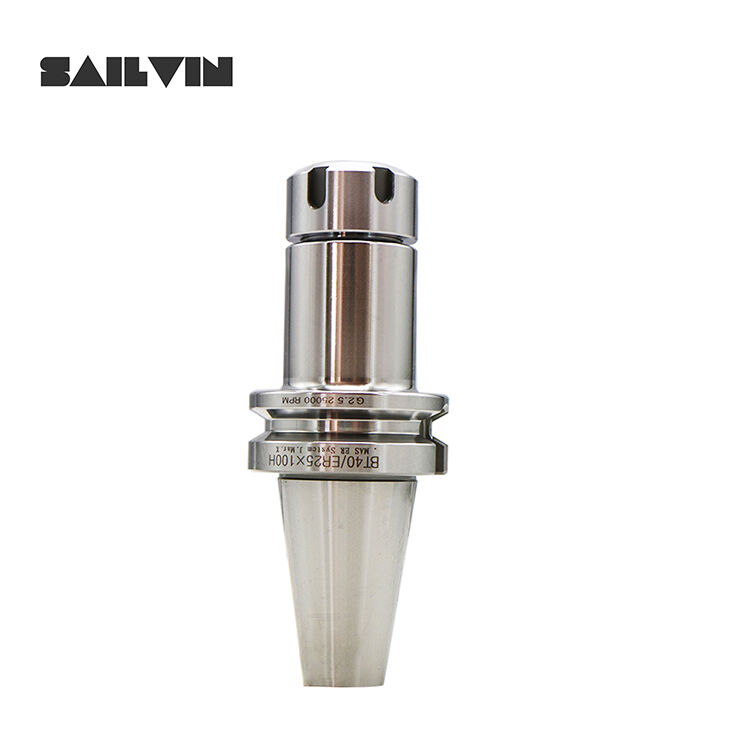

BT ER Milling Chuck Arbors

1, Material: 40Cr/20CrMnTi

2, Hardness: HRC48-52/HRC58-62

3, Balancing: can be made by specific requirement

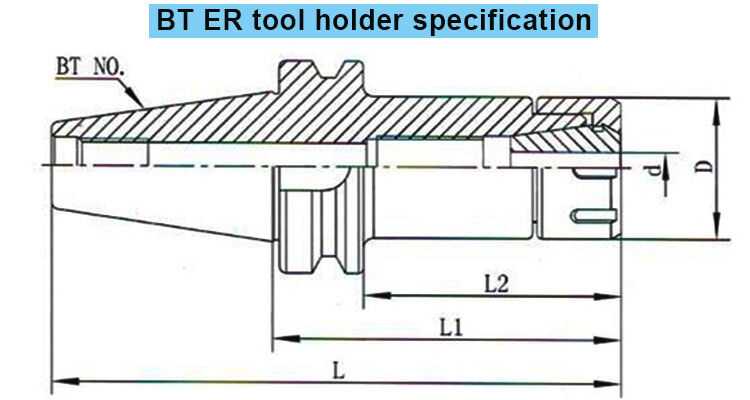

BT ER tool holder drawing.jpg

Model

L

L1

L2

D

d(Clamping Range)

BT30

ER11-70

118.4

70

48

19

 1-7

ER11-100

148.4

100

78

19

 1-7

ER16-70

118.4

70

48

28

 1-10

ER16-100

148.4

100

78

28

 1-10

ER20-70

118.4

70

48

34

 1-13

ER20-100

148.4

100

78

34

 1-13

ER25-70

118.4

70

48

42

 3-16

ER25-100

148.4

100

78

42

 3-16

ER32-70

118.4

70

48

50

 3-20

ER32-100

148.4

100

78

50

 3-20

BT40

ER16-70

135.4

70

43

28

 1-10

ER16-100

165.4

100

73

28

 1-10

ER16-150

215.4

150

123

28

 1-10

ER20-70

135.4

70

43

34

 1-13

ER20-100

165.4

100

73

34

 1-13

ER20-150

215.4

150

123

34

 1-13

ER25-70

135.4

70

43

42

 3-16

ER25-100

165.4

100

73

42

 3-16

ER25-150

215.4

150

123

42

 3-16

ER32-70

135.4

70

43

50

 3-20

ER32-100

165.4

100

73

50

 3-20

ER32-150

215.4

150

123

50

 3-20

ER40-80

145.4

80

53

63

 3-26

ER40-100

165.4

100

73

63

 3-26

BT50

ER16-100

201.8

100

62

28

 1-10

ER16-150

251.8

150

112

28

 1-10

ER20-100

201.8

100

62

34

 1-13

ER20-150

251.8

150

112

34

 1-13

ER25-100

201.8

100

62

42

 3-16

ER25-150

251.8

150

112

42

 3-16

ER32-100

201.8

100

62

50

 3-20

ER32-150

251.8

150

112

50

 3-20

ER40-100

201.8

100

62

63

 3-26

ER40-150

251.8

150

112

63

 3-26


1, When order, please indicate the hilt the concrete form. If needs the central cold and the flange water leakage hilt, please mark AD/B.

2, According to needs to be possible to provide the balanced hilt, the standard precision is G6.3/12000, the precised precision is G2.5/25000RPM.

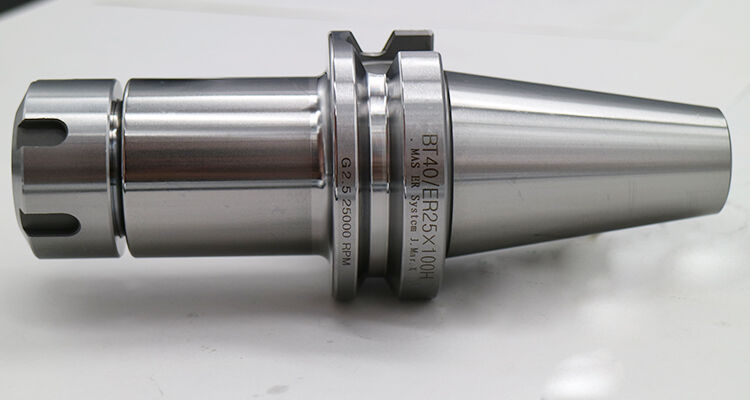

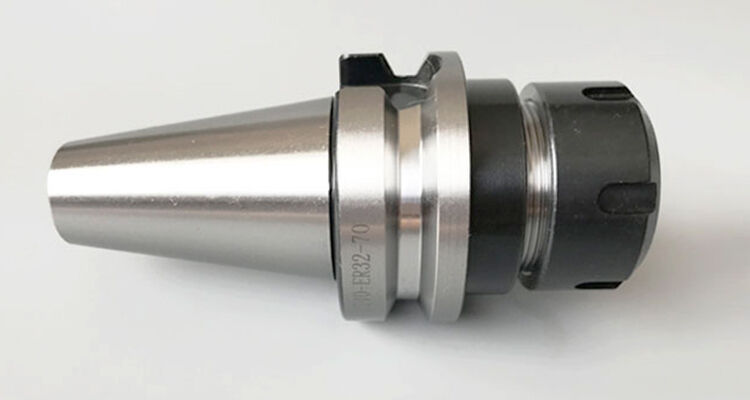

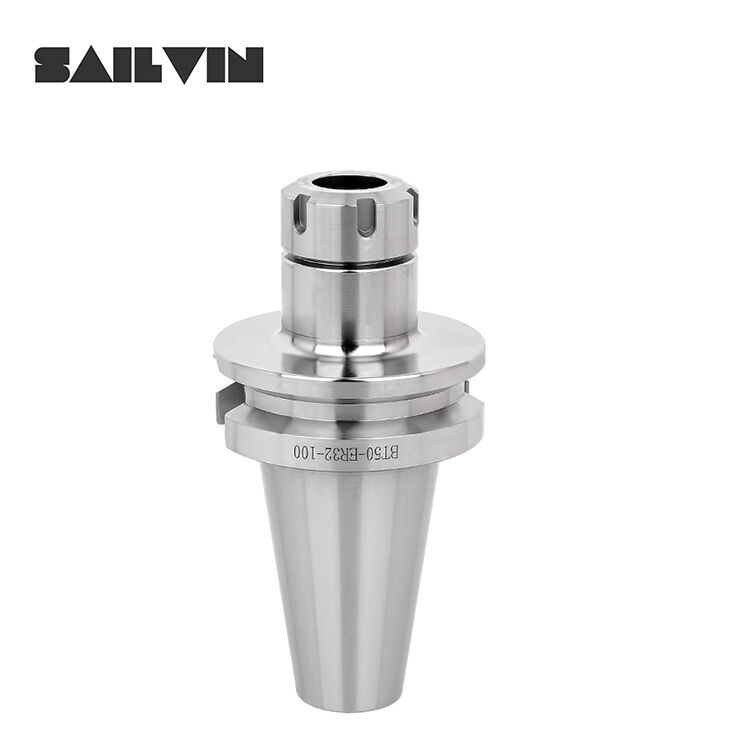

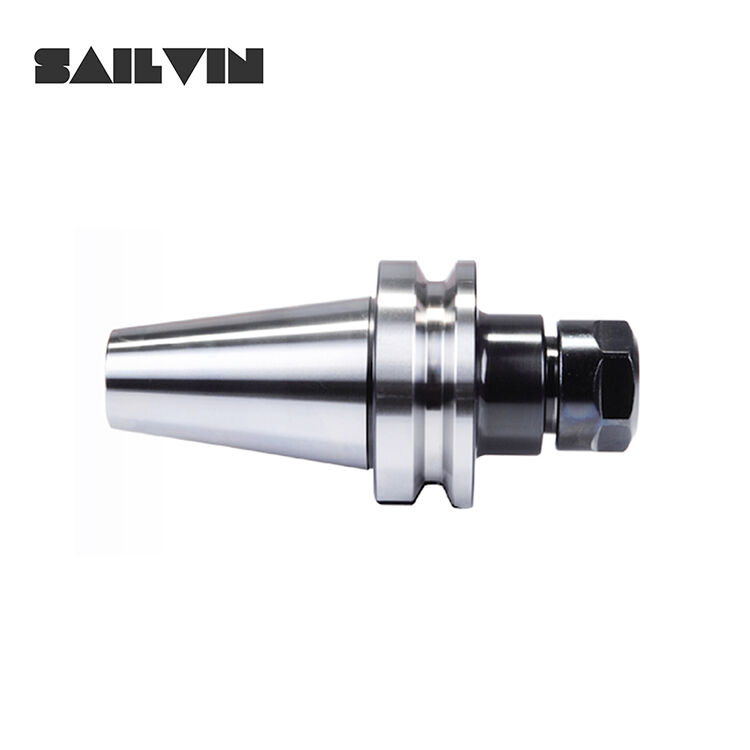

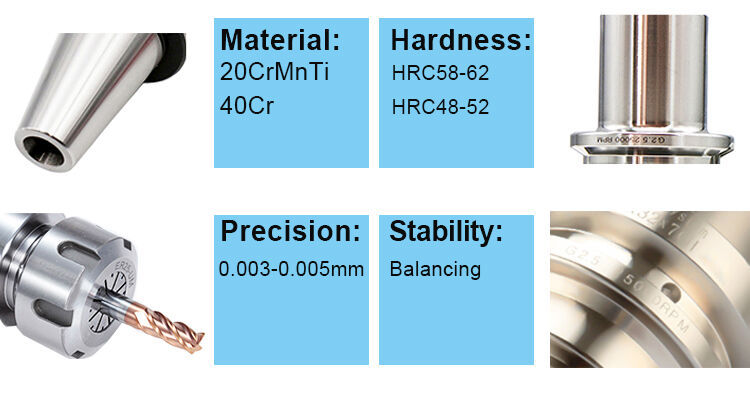

►Products Images:

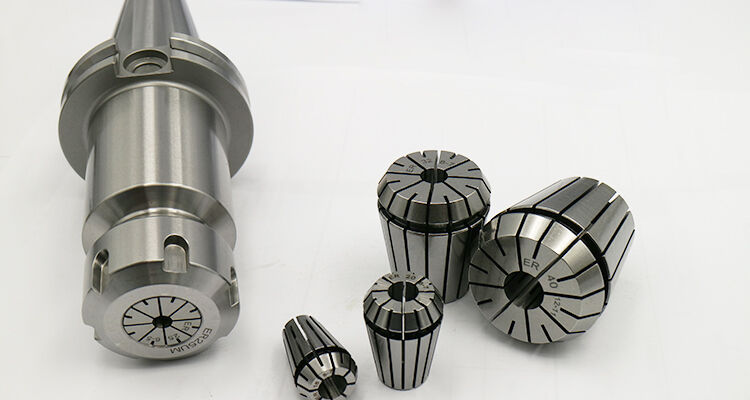

BT ER tool holder chuck1.jpg
